Favorable Price Multi-Functional Telescopic Loader 4WD
Feature
1. ROPS and FOPS cab designed in order to offer the best visibility,ergonomics and comfort.
2. High end hydraulic system ensures stable andefficient productivity.
3. Various attachments suit for different operating modes and the telescopic arm expands your working range.
Technical parameter
|
The Technical Parameter of WZ40-28 Backhoe Loader |
|
| Overall Operating Weight | 8000KG |
| Transport Dimension | |
| L*W*H | 7600×2260×2890mm |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.5m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2800KG |
| Bucket Dumping Height | 2800mm |
| Bucket Dumping Distance | 1062mm |
| Backhoe Capacity | 0.3m3 |
| Max. Digging Depth | 4100mm |
| Optional Digging Depth | 5000mm |
| Swing Angle of backhoe | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Brand/Model | YUCHAI YCD4J22T-115 Turbo engine |
| Type | Line，Direct injection，Four-Stroke，Water Cooling |
| Rated Power | 85KW |
| Optional Engine | YUCHAI/YCD4T33T6-115(90KW）
CUMMINS 74KW 4BT3.9-C100 CUMMINS EURO3 75KW QSB3.9-C100 EURO5 81KW YUCHAI or EPA4 CUMMINS 74KW engine |
| Steering System | |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Brand | FEICHENG YUNYU |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 4/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | Four Gears Ahead, Four Gears Astern |
| Max.Speed | 30Km/h |
| Tyre | |
| Model | （F）14-17.5
（R）19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
| Packing Quantity（1*40HC） | 2Units |
| Remaks: The parameters or configuration are subject to change without notice. | |
Deatiled Picture

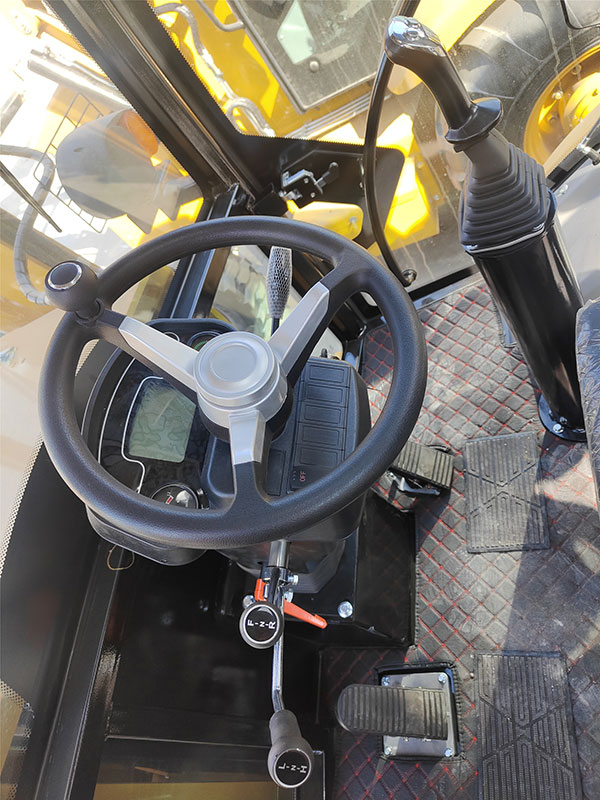

cockpit

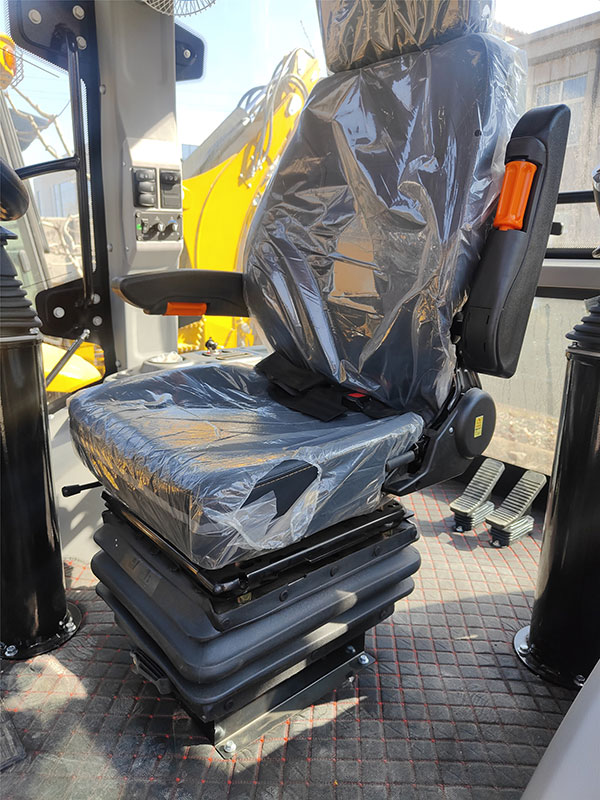

cockpit
cockpit
